VAS/5 ( weight 15 kg approx. 6 detonators)

Are special container particularly recomended for special antisabotage group that have the task to neutralize suspicious pack or booby trap.This because the detonators are protect till the moment of insert in explosive mass.



VAS/5 6 detonators

VAS/5 fastening ribbon with quick release thightener - ground cable - titanium alloy grade 2



VAS/5 6 detonators

VAS/5 brass wing nut with stainless steel pin - padlock





Certification

The containers are certified by

1) ONU mark from the Italian Minister of Transportation

2) Permanent commission for the testing of the War Equipment - classified O.N.U. 1.4.S. for military use.

3) MARITELERADAR (Italian Navy Commission for the testing of equipment, to be used on board military vessels, which are sensible to electromagnetic waves - HERO certification )



Ballistical testing



Ballistical VAS/5 the primed detonator







Ballistical VAS/5 internal- the detonator after the explosion

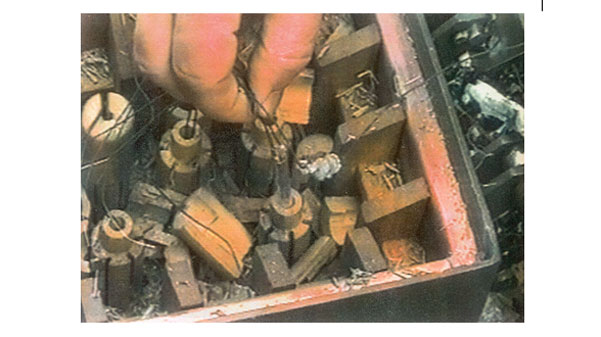

Ballistical VAS/5 internal - The result of the simultaneous explosion of 6 detonators







Ballistical VAS/5 the result of the simultaneous eplosion of 6 detonators





Thermal shock

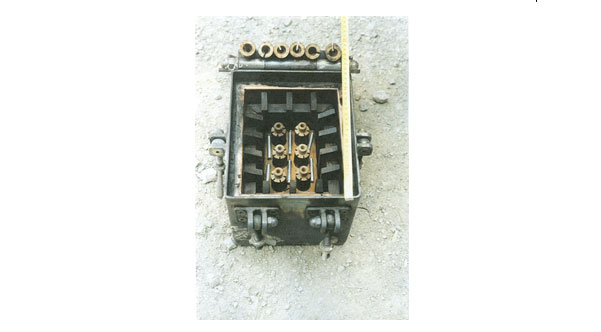

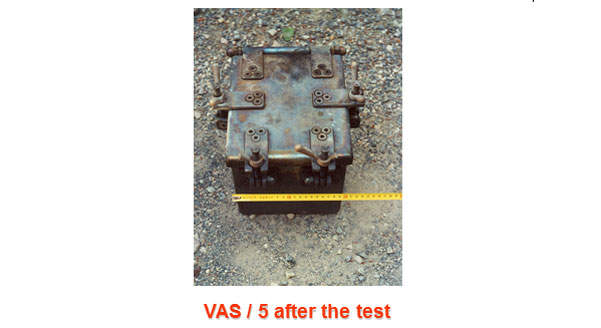

Thermal shock testing VAS/5 after the test







Thermal shock testing VAS/5 after the test







Thermal shock testing VAS/4







Thermal shock testing VAS/4







Testing on electromagnetic induction

The tests have been carried out according to the rules established by STANAG 1397 RAD ed.1.

After the test the containers have been assigned code SRAD: R6-T6-U6-W6-Y6-Z4 and classified NATO "SAFE"
