Products - VAS/8

Technical

VAS/8 (weight 80 kg approx.; 80 detonators or 20 flash-bang)

Is a special container light and easy to handling

VAS/8 80 detonators

VAS/8 door - closing bar - titanium cylinder gr.2 - fixing straps with quick release turnbuckle - wheels

VAS/8 80 detonators

VAS/8: wooden box for detonators

Certification

The containers are certified by

1) ONU mark from the Italian Minister of Transportation

2) Permanent commission for the testing of the War Equipment - classified O.N.U. 1.4.S. for military use.

3) MARITELERADAR (Italian Navy Commission for the testing of equipment, to be used on board military vessels, which are sensible to electromagnetic waves - HERO certification )

Ballistical testing

Ballistical VAS/8 the 80 detonators ready in the wooden boxes

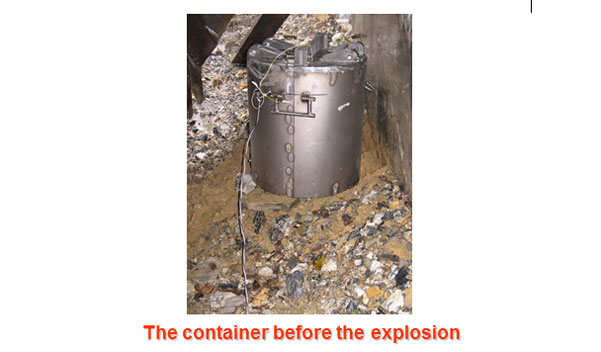

Ballistical VAS/8 the detonators in the container ready to be exploded

Ballistical VAS/8 internal

Ballistical VAS/8 the residue of the internal structure of the container after the 80 detonators have exploded

Thermal shock

Thermal shock testing VAS/8 detonators and flash bang before the test

Thermal shock testing VAS/8 a sample of flash bang before the test

Thermal shock testing VAS/8 the container on the pyre

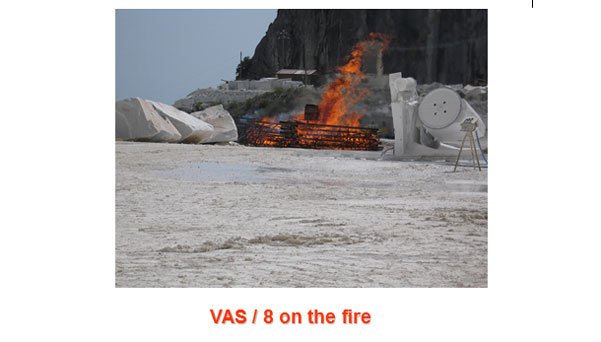

Thermal shock testing VAS/8 on the fire

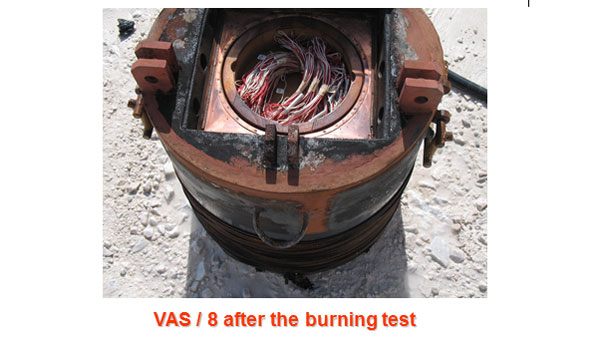

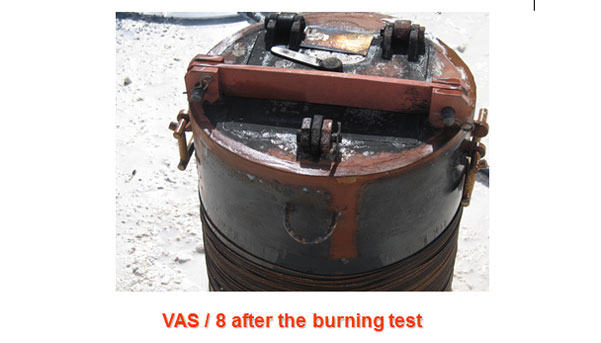

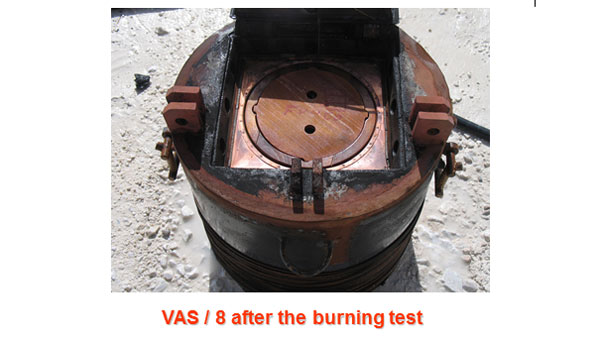

Thermal shock testing VAS/8 after burning test

Thermal shock testing VAS/8 the flash bang after the test

Thermal shock testing VAS/8

Testing on electromagnetic induction

The tests have been carried out according to the rules established by STANAG 1397 RAD ed.1.

After the test the containers have been assigned code SRAD: R6-T6-U6-W6-Y6-Z4 and classified NATO "SAFE"
